Dynamic Trajectory AHD Trunk Handle Camera For Ford Focus MK2 MK3 Mondeo Ranger Explorer C-Max Kuga Fiesta Fusion Backup Cam

$56.77

SPECIFICATIONS

Alarm Type: Vehicle Backup Cameras,ACCESSORIES,Rear Side

Brand Name: GreenYi

Certification: CE,RoHS

Choice: yes

Fit For: AHD Monitor

Guiding Line: Yes

Hign-concerned Chemical: None

Length of Video Cable: 6M

Lens Material: Plastic + Glass

Material: Abs

Model Number: LS8004/914/444/8025/8027

Note: Please purchase according to the actual installation size, the car model is for reference only

Origin: Mainland China

Parking Assistance Type: Dynamic Trajectory Guide Line

Pixels: AHD1080P-CVBS or AHD720P-CVBS

Power: DC 12V

Shell Material: Plastic

Signal Format: PAL

View Angle: 155 degree

Waterproof: Support

White Balance: Auto

Wire or Wireless: Wire

semi_Choice: yes










Dynamic Trajectory AHD Trunk Handle Camera For Ford Focus MK2 MK3 Mondeo Ranger Explorer C-Max Kuga Fiesta Fusion Backup Cam






Camera Feature:

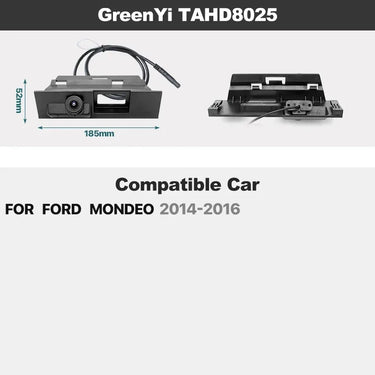

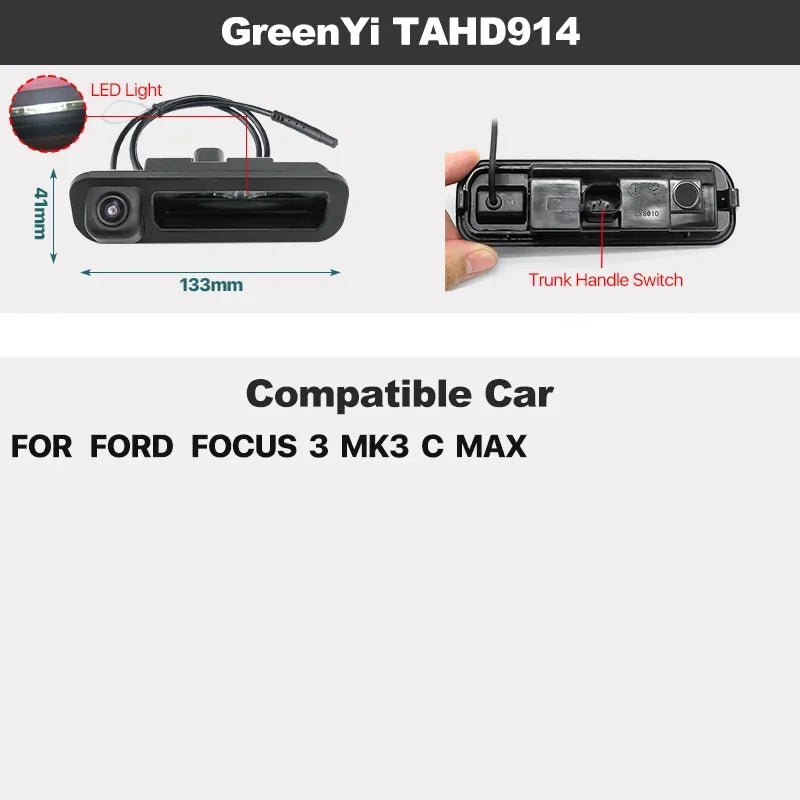

* Intelligent Reverse Trajectory Dynamic Special Trunk Handle/ License Plate Light Camera, Fit for Ford Car (Please refer to the car model chart below for details).
* it not need path box, not need CANBUS or OBD interfaces, built-in reversing Tracks module. But the camera only support Aftermarket Monitors, Android DVD and the Monitor with RCA input plug.
* Imported chips reversing track, picture clarity, stability, good night vision effect.
* 155 deg wide angle lens, waterproof, dust-proof, anti-fog, shock-proof.
* Wide Angle, image recognition technology, precise trajectory reversing, the first leading technology.


1. Pixels: 1920*1080P or 1280 * 720P Optional.
2. Signal Switch: camera default as AHD signal, cut white cable can change the signal to CVBS signal.
3. View Angle: 155 deg wide degree
4. Power: DC 12V
5. TV system: PAL
6. Video Output Plug: RCA
7. Night Vision: starlight night vision
8. Sync. System: internal
9. Image Ratio: 16:9
10. White Balance: Auto
11. Waterproof: IP68
12. Video Cable Length: about 6m
13. Lens 6 glass +Metal/Plastic
14. Guide Line: Dynamic Track

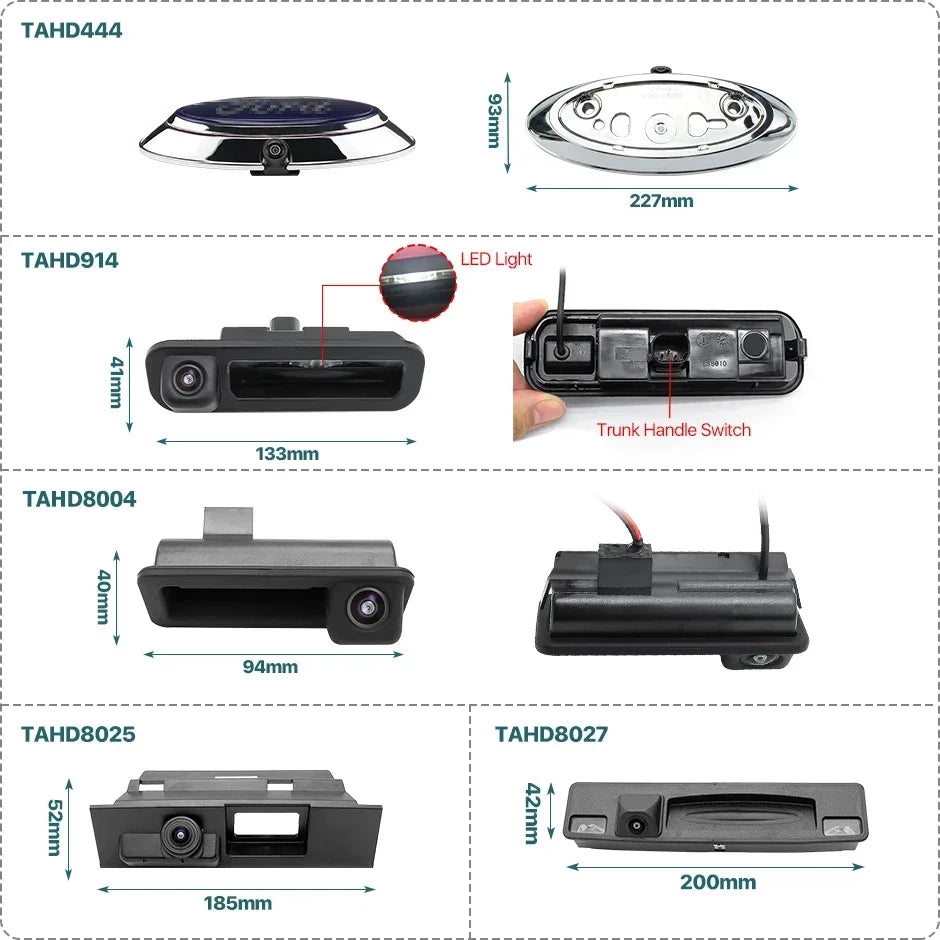

Tips: Please purchase according to the actual installation size, the car model is for reference only.




Dynamic Trajectory Effect



* The camera comes with three kinds of dynamic track parking lines, which will follow the vehicle's action by themselves, without steering wheel operation.

*The intelligent dynamic trajectory guide line changes according to the body's movement angle and speed when reversing.



Note: The trajectory line does not move according to the steering wheel. The camera is suitable for aftermarket DVD, Android display.







Support Waterproof




The camera is filled with waterproof silicone, Effective chip protection,
IP68-Rated for Use in Extreme Conditions







Pure Copper 6m Video Cable




Compared to copper-clad aluminium cables, data is transmitted in pure copper cables with less signal loss.








Integrated Step-down Module




Support DC12V~24V,
Low power consumption, cable never hot, reduce fire risk.

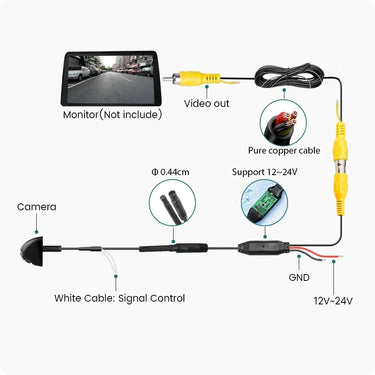

About Camera Signal Settings



Through signal control, it can support CVBS and AHD displays.
•Camera default as AHD signal, cut the white cable can change to CVBS signal.








155° View Angle



* Real 155° wide viewing angle. the display looks like fish eye, glass lens, with a wide field of vision, dangerous blind spots are a thing of the past.




Installation Diagram
